DS9370/DS9371 Series Panoramic TriTech Ceiling Mount Detectors • Up to 6.1 m (20 ft) mounting height • Fully adjustable optics for coverage integrity and customization • Hinge...
- Varenr.:5401030103
- EAN nr.:4060039178336
- Typenr.:DS9370E, F.01U.414.146
1.222,00 kr.
pr. stk. | inkl. moms
Måske interessant?
Beskrivelse

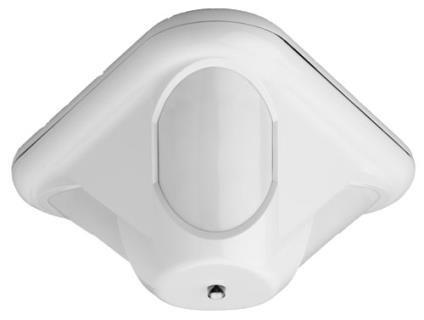

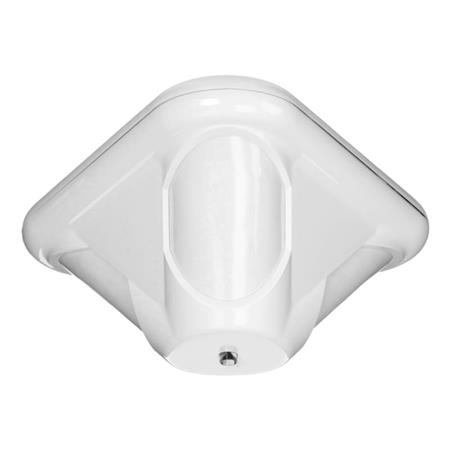

DS9370/DS9371 Series Panoramic TriTech Ceiling Mount Detectors
• Up to 6.1 m (20 ft) mounting height
• Fully adjustable optics for coverage integrity and customization
• Hinged chassis and base plate for easy installation
• High efficiency LED and light pipe system for easy walk testing
• First Step processing, or FSP
Each DS9370 Series TriTech PIR/Microwave Doppler radar Motion Detector model is panoramic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms.
Each model can be mounted on ceilings as high as 6.1 m (20 ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas.
Region Regulatory compliance/quality marks
Europe
EN50131 - 2820200009A1
EN50131 - 2800200010A1
Mounting
Height Range 2.4 m to 6.1 m (8 ft to 20 ft) recommended
Location Mounts directly to ceiling or to standard 10.2 cm octagonal electrical box.
Outputs
Alarm Form C Solid State relay rated at 2.8 W, 100 mA at 28 VDC for DC-resistive loads.
Tamper Cover and ceiling tamper. Normally Closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 100 mA, 3 W maximum.
Power Requirements
Current 12 mA standby, 20mA in alarm. Max 24mA
Voltage 9 VDC to 15 VDC.
• Up to 6.1 m (20 ft) mounting height
• Fully adjustable optics for coverage integrity and customization
• Hinged chassis and base plate for easy installation
• High efficiency LED and light pipe system for easy walk testing
• First Step processing, or FSP
Each DS9370 Series TriTech PIR/Microwave Doppler radar Motion Detector model is panoramic and uses several patented processing techniques to provide excellent catch performance with freedom from false alarms.
Each model can be mounted on ceilings as high as 6.1 m (20 ft). With three separate PIR sections that are fully adjustable, the DS9370 Series provides coverage integrity at all mounting heights, plus the ability to customize the coverage for specific areas.
Region Regulatory compliance/quality marks
Europe
EN50131 - 2820200009A1
EN50131 - 2800200010A1
Mounting
Height Range 2.4 m to 6.1 m (8 ft to 20 ft) recommended
Location Mounts directly to ceiling or to standard 10.2 cm octagonal electrical box.
Outputs
Alarm Form C Solid State relay rated at 2.8 W, 100 mA at 28 VDC for DC-resistive loads.
Tamper Cover and ceiling tamper. Normally Closed (with cover in place) tamper switch. Contacts rated at 28 VDC, 100 mA, 3 W maximum.
Power Requirements
Current 12 mA standby, 20mA in alarm. Max 24mA
Voltage 9 VDC to 15 VDC.
Specifikationer
-
Varenummer:5401030103
-
EAN nummer:4060039178336Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:DS9370E, F.01U.414.146Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Bosch
