AIA central 16 - 512 zoner Klasse 3, SPC6350

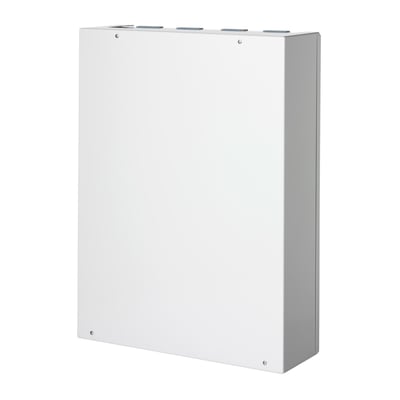

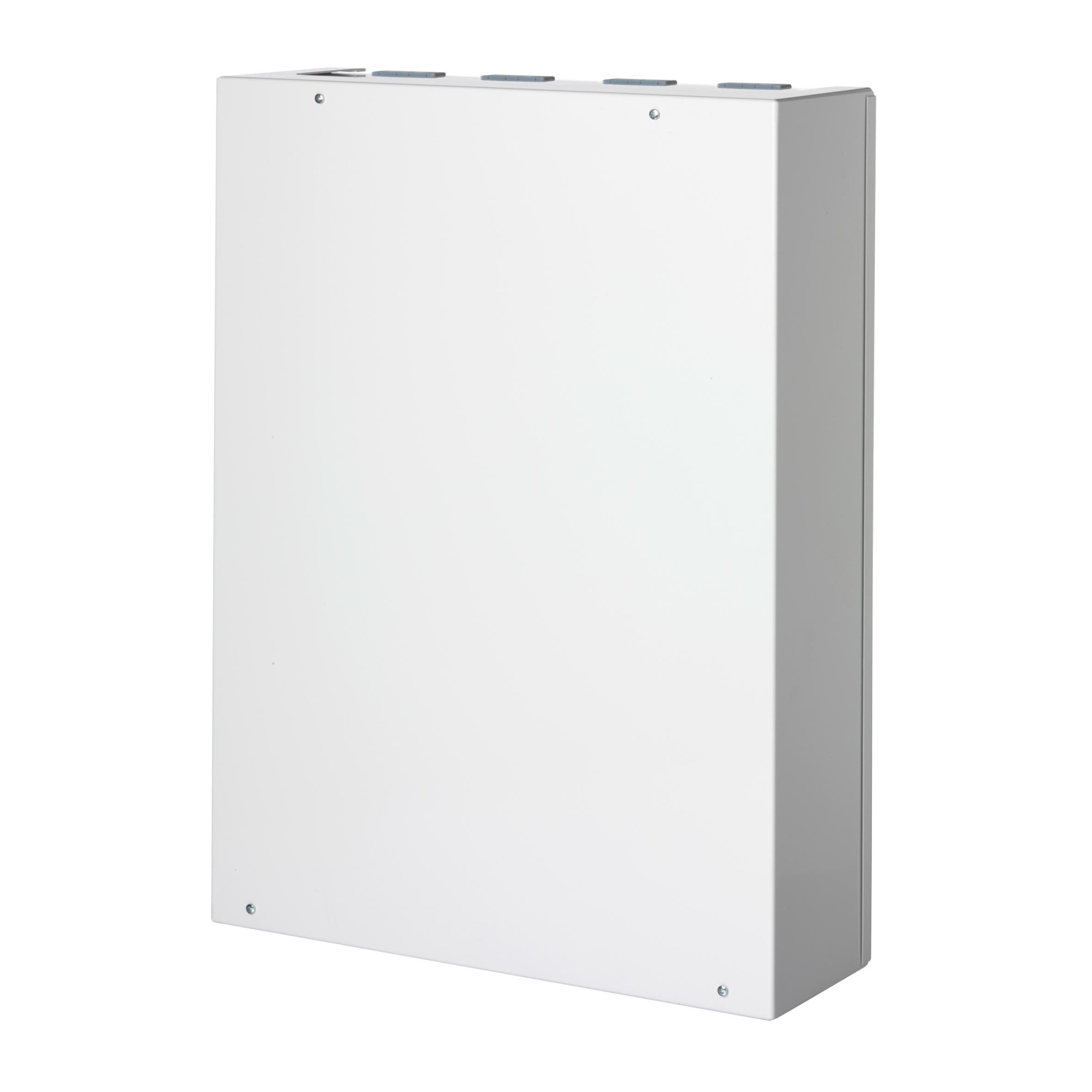

DescriptionThe SPC6350.320 control panel combines in an optimal way intrusion and access functionality in one system and can be expanded according to specific customers and project needs with up to 512 zones (16 on-board), 512 outputs (12 on-board), 32 system keypads, 64 doors, 16 verification zones. The controller provides 2 X-BUS ports (2 stubs or 1 loop), 60 areas, 2500 users with different access levels, memory for 10’000 intrusion and 10'000 access events, integrated Web Server, 2 terminals for the pluggable PSTN and GSM/GPRS communication options, on-board Ethernet interface. The system is expandable with wireless receivers and supports up to 120 Intrunet wireless detectors (mixed with wired zones). The panel comes in a tamper protected metal housing with space for 2 optional 27 Ah batteries and 4 additional expanders.Technical dataFirmwareV3.4 (or higher)Programmable areas60Max. number of user codes2500Wireless Panic AlarmUp to 128Event memory10'000 intrusion events, 10'000 access eventsLanguageMulti-language support (en + 4 imported language files). Available language files: de, en, es, fr, it, nl, sv.Number of on-board zones16Max. number of hardwired zones512Max. number of wireless zones120 (take away wired zones)EOL resistorDual 4K7 (default), other resistor combinations selectableMax. number of outputs512Relay outputs4 (single-pole changeover, 30 V DC / max. 1 A resistive switching current)Electronic output5 (each max. 400 mA resistive switching current), 3 supervised (each max.400 mA resistive switching current)Door capacityMax. 64 entry doors or 32 entry/exit doorsNumber of card readerMax. 64Radio moduleOptional (SPCW110)Verification16 verification zones with max. 4 IP-cameras and 16 audio devices.VideoUp to 16 pre / 16 post event images (by JPEG resolution 320 x 240, max. 1 frame / sec.)AudioUp to 60 sec. pre / 60 sec. post audio recordingTime function64 calendars (53 weeks, multiple on/off switching patterns for users, areas, inputs, outputs, keypads, doors)Macro languageCause & Effect programming (1024 triggers / 512 mapping gates)Number of field devicesMax. 128 (32 keypads, 32 door-expanders, 64 input/output expanders)Interfaces2 X-BUS (2 spurs or 1 loop), 2 RS232, 1 USB (PC connection), 1 SPC Fast Programmer, 1 Ethernet (RJ45)Tamper contactFront / back tamper, 1 auxiliary tamper contact inputMains voltage230 VAC, + 10%/ -15%, 50 HzOperating currentMax. 415 mA at 12 VDC (all relays activated)Quiescent currentMax. 350mA at 12 VDCOutput voltage13-14 VDC in normal conditions (mains powered and fully charged battery)Auxiliary power (nominal)Max. 2200 mA at 12 V DC (8 separately fused outputs, max. 300mA per output)Battery typeYUASA NP24-12 (12V 24 Ah), Alarmcom AB1227-0 (12V 27 Ah) ,(batteries not supplied with product)Operating temperature0 ~ +40 °CColourRAL 9003 (signal white)Weight18.600 kg (housing incl. cover),11.500 kg (housing without cover)Dimensions (W x H x D)498 x 664 x 157 mmHousingMetal housing (1.5 mm mild steel)<br><br>Godkendt i klasse 3.
