EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices fro...

Varenr.:
3398992979
EAN nr.:
3606481014320
Typenr.:
PAS600L

4.819,00 kr.

pr. stk. | inkl. moms

Måske interessant?

Overspændingsafleder iPF 20kA, 340V, 3P+N, bolig
483,00 kr.
Schneider sløjfeskinne 3P+N 80A 12M bundmontage
80,50 kr.
Overspændingsafleder iPF 40kA, 340V, 3P+N, bolig
655,00 kr.
Sløjfeskinne afdækning t/pins R9XT20
48,00 kr.
Plugs TP2-100 rød - 100 stk
33,00 kr.
Forgreningsdåse Mureva, antracit grå, IP65, 87 x 87 x 42 mm
20,75 kr.
Sløjfeskinne 4P 100A 12M
199,00 kr.
Plugs TP1-100 gul - 100 stk
29,75 kr.
Forgreningsdåse 65X65X45 abs grå
14,60 kr.
Kabelclips TC 8-12mm 35mm søm lg - 100 stk
70,50 kr.

Beskrivelse

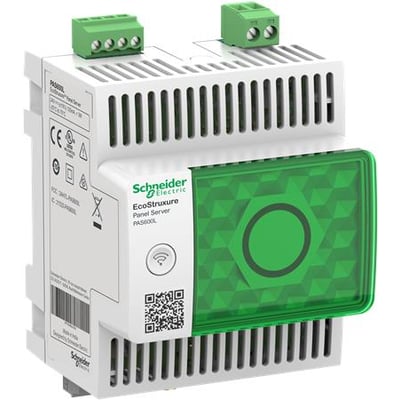

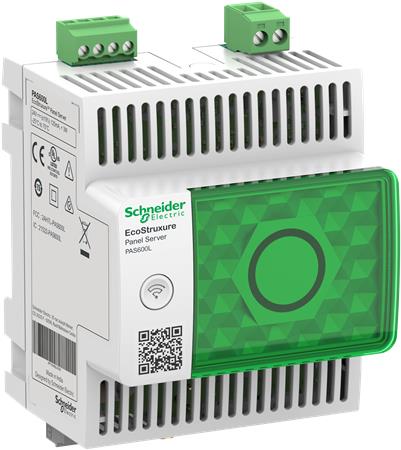

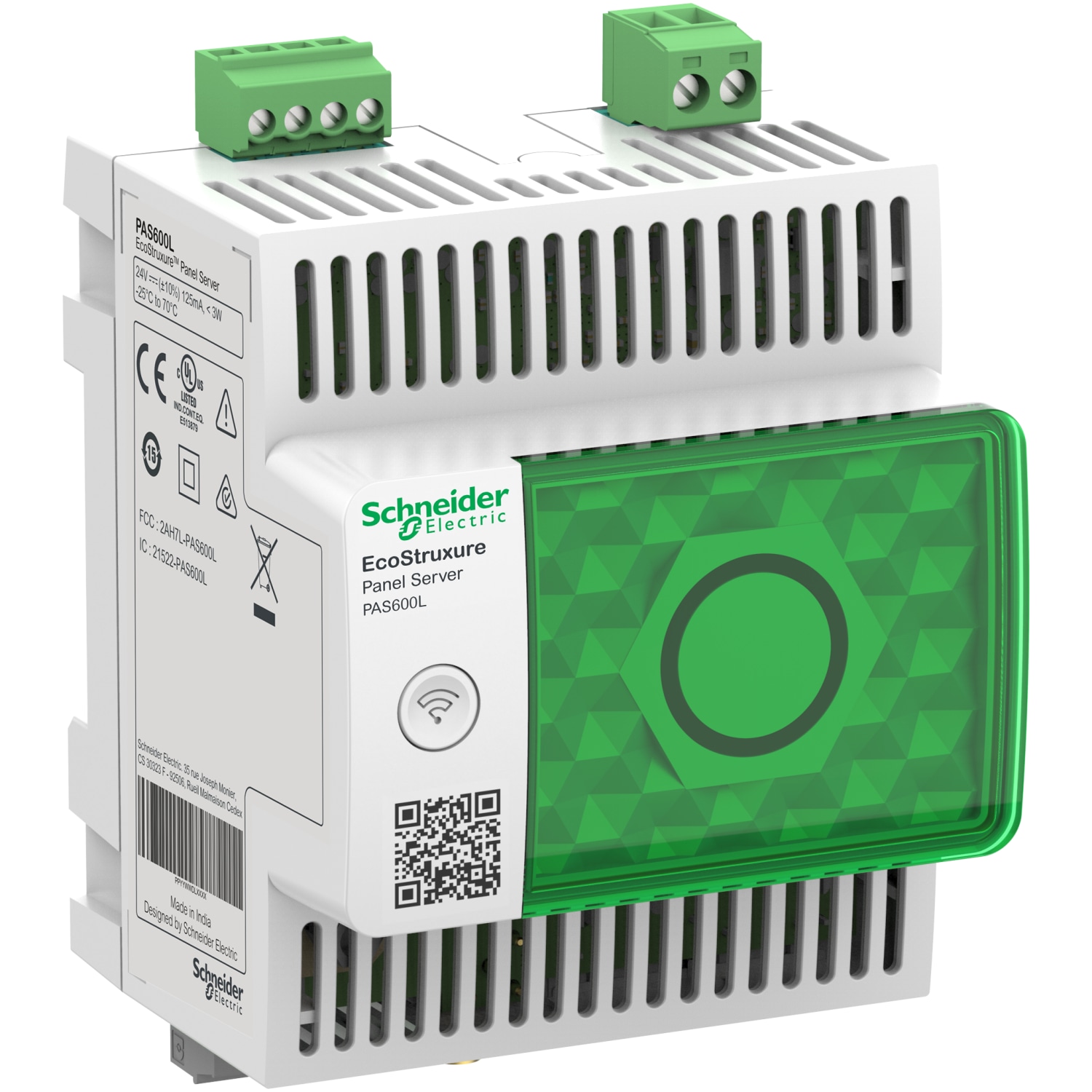

EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. User friendly web-pages offer first-lelvel of monitoring of measurements of all the conected devices including log of all alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. 24VDC Power Supply 3W Max. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Modbus RS485 open-style connector. One connector for external Wi-Fi/Bluetooth antenna. Connector for two Digital Inputs for dry contact or WAGES. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.

Specifikationer

Varenummer:

3398992979
EAN nummer:

3606481014320

Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
Typenummer:

PAS600L

Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
Brand:

Schneider Electric
