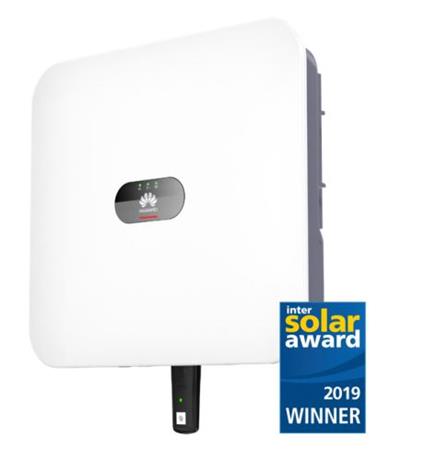

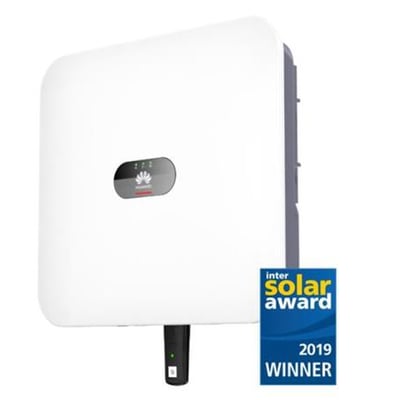

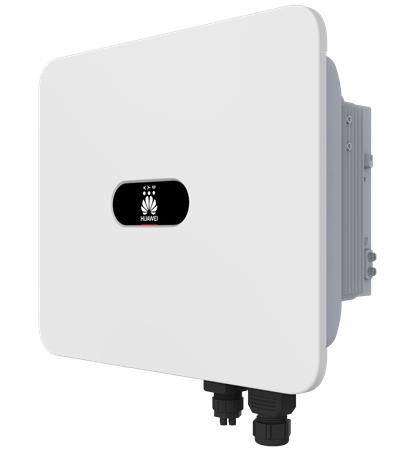

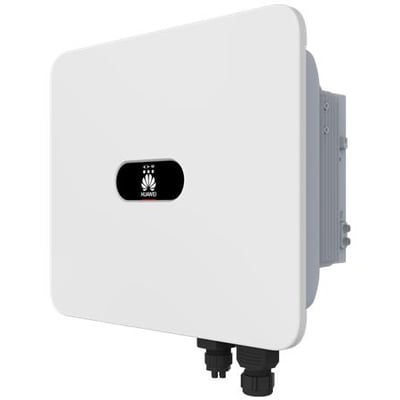

Huawei SUN2000-5KTL-M1 Transformerløs 3-faset hybrid inverter med WLAN, effekt på 5,0kW. 2 MPP tracker Inkl. Smart Dongle-WLAN-FE Tekniske data i henhold til gældende datablad.
- Varenr.:5478001713
- EAN nr.:5705157314691
- Typenr.:SUN2000-5KTL-M1
10.952,00 kr.
pr. stk. | inkl. moms
Måske interessant?
Beskrivelse
Huawei SUN2000-5KTL-M1 Transformerløs 3-faset hybrid inverter med WLAN, effekt på 5,0kW. 2 MPP tracker Inkl. Smart Dongle-WLAN-FE
Tekniske data i henhold til gældende datablad.
Input:
Recommended max. PV power 7,500 Wp
Max. input voltage 1,100 V
Operating voltage range 140 V ~ 980 V
Start-up voltage 200 V
Operating voltage range 140 V ~ 850 V
Start-up voltage 200 V
Rated input voltage 600 V
Max. input current per MPPT 13,5 A
Max. short-circuit current 19,5 A
Number of MPP trackers 2
Max. number of inputs per MPP tracker 1
Input (DC Battery)
HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range 600 V ~ 980 V
Max operating current 16.7 A
Max charge Power 10,000 W
Output :
Grid connection Three-phase
Rated output power 5,000 W
Efficiency
Max. efficiency 98.4 %
European weighted efficiency 97.5 %
Weight (incl. mounting bracket) 17 kg
Dimension (incl. mounting bracket) 525 x 470 x 146,5 mm
Degree of protection IP65
Huaweis garantibetingelser gælder.
Tekniske data i henhold til gældende datablad.
Input:
Recommended max. PV power 7,500 Wp
Max. input voltage 1,100 V
Operating voltage range 140 V ~ 980 V
Start-up voltage 200 V
Operating voltage range 140 V ~ 850 V
Start-up voltage 200 V
Rated input voltage 600 V
Max. input current per MPPT 13,5 A
Max. short-circuit current 19,5 A
Number of MPP trackers 2
Max. number of inputs per MPP tracker 1
Input (DC Battery)
HUAWEI Smart String ESS 5kWh – 30kWh
Operating voltage range 600 V ~ 980 V
Max operating current 16.7 A
Max charge Power 10,000 W
Output :
Grid connection Three-phase
Rated output power 5,000 W
Efficiency
Max. efficiency 98.4 %
European weighted efficiency 97.5 %
Weight (incl. mounting bracket) 17 kg
Dimension (incl. mounting bracket) 525 x 470 x 146,5 mm
Degree of protection IP65
Huaweis garantibetingelser gælder.
Specifikationer
-
Varenummer:5478001713
-
EAN nummer:5705157314691Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:SUN2000-5KTL-M1Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Huawei
