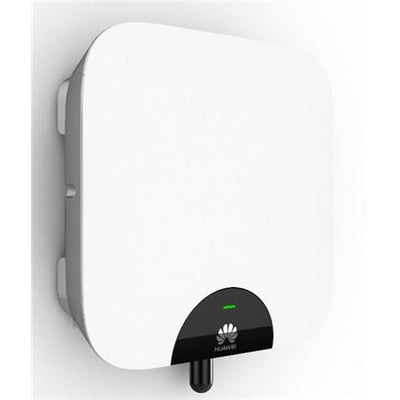

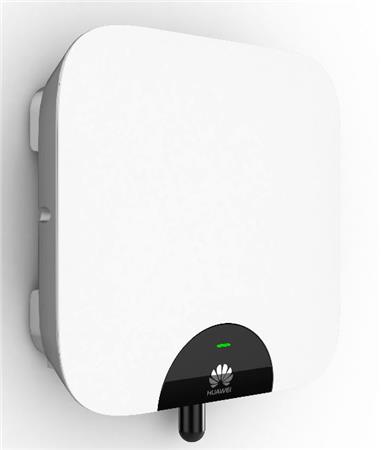

Huawei SUN2000-3KTL-L1. 1 Transformerløs 1-faset hybridinverter med WLAN, effekt på 3,0 kW. 2 MPP tracker Indbygget WLAN modul Technical Specification SUN2000L-3KTL-L1 Input...
- Varenr.:5478002176
- EAN nr.:5705157329510
- Typenr.:SUN2000 - 3KTL-L1
6.410,00 kr.
pr. stk. | inkl. moms
Måske interessant?
-
87.588,00 kr. -
71.382,00 kr. -
83.781,00 kr. -
118.203,00 kr. -
99.772,00 kr. -
5.133,00 kr. -
64.336,00 kr. -
22.876,00 kr. -
1.328,00 kr. -
19.536,00 kr.
Beskrivelse
Huawei SUN2000-3KTL-L1. 1 Transformerløs 1-faset hybridinverter med WLAN, effekt på 3,0 kW. 2 MPP tracker Indbygget WLAN modul
Technical Specification
SUN2000L-3KTL-L1
Input:
Recommended max. PV power 4,500 Wp
Max. input voltage 600 V
Operating voltage range 90 V~ 560 V
The maximum input voltage and operating voltage upper limit will be reduced to 495 V when inverter connects and works with LG battery. (Only applicable for PV string.)
Start-up voltage 100 V
Full power MPPT voltage range 90 V ~ 560 V
Rated input voltage 360 V
Max. input current per MPPT 13 A
Max. short-circuit current 15 A
Number of MPP trackers 2
Max. number of inputs per MPPT 2
Output :
Grid connection Single phase
Rated output power 3,000 W
Max. apparent power 3,300 VA
Rated output voltage 220 V / 230 V / 240 V
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 15 A
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion = 3 %
Efficiency
Max. efficiency 98.3 %
European weighted efficiency 97.3 %
General Data
Operating temperature range -25 ~ +60 °C
(Derating above 45°C @ Rated output power)
Relative operating humidity 0 %RH~100 %RH
Operating altitude 0 - 4,000 m (Derating above 2,000 m)
Cooling = Natural convection
Display LED indicators
Communication RS485, WLAN via inverter built-in WLAN module
Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket) 12.6 kg
Dimension (incl. mounting bracket) 365 * 365 * 140 mm
Degree of protection IP65
Battery Compatibility
LG Chem RESU 7H_R / 10H_R
HUAWEI PowerMate ESS Battery LUNA2000-5/10/15-S0.
Technical Specification
SUN2000L-3KTL-L1
Input:
Recommended max. PV power 4,500 Wp
Max. input voltage 600 V
Operating voltage range 90 V~ 560 V
The maximum input voltage and operating voltage upper limit will be reduced to 495 V when inverter connects and works with LG battery. (Only applicable for PV string.)
Start-up voltage 100 V
Full power MPPT voltage range 90 V ~ 560 V
Rated input voltage 360 V
Max. input current per MPPT 13 A
Max. short-circuit current 15 A
Number of MPP trackers 2
Max. number of inputs per MPPT 2
Output :
Grid connection Single phase
Rated output power 3,000 W
Max. apparent power 3,300 VA
Rated output voltage 220 V / 230 V / 240 V
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 15 A
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion = 3 %
Efficiency
Max. efficiency 98.3 %
European weighted efficiency 97.3 %
General Data
Operating temperature range -25 ~ +60 °C
(Derating above 45°C @ Rated output power)
Relative operating humidity 0 %RH~100 %RH
Operating altitude 0 - 4,000 m (Derating above 2,000 m)
Cooling = Natural convection
Display LED indicators
Communication RS485, WLAN via inverter built-in WLAN module
Ethernet via Smart Dongle-WLAN-FE (Optional); 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket) 12.6 kg
Dimension (incl. mounting bracket) 365 * 365 * 140 mm
Degree of protection IP65
Battery Compatibility
LG Chem RESU 7H_R / 10H_R
HUAWEI PowerMate ESS Battery LUNA2000-5/10/15-S0.
Specifikationer
-
Varenummer:5478002176
-
EAN nummer:5705157329510Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:SUN2000 - 3KTL-L1Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Huawei
