PRISGARANTI
9 stk. på lager
Billigste fragt: DAO Pakkeshop 35,00 kr. (leveres tirsdag d. 26/11)
Se alle muligheder
| Metode | Pris | Leveres |
|---|---|---|
| DAO Pakkeshop | 35,00 kr. | Tirsdag d. 26/11 |
| GLS Pakkeshop | 42,00 kr. | Tirsdag d. 26/11 |
| DAO Hjemmelevering | 45,00 kr. | Tirsdag d. 26/11 |
| GLS Erhverv | 49,00 kr. | Tirsdag d. 26/11 |
| GLS Hjemmelevering | 69,00 kr. | Tirsdag d. 26/11 |
| Direkte levering | 149,00 kr. | Mandag d. 25/11 |
| Click&Collect i Svenstrup (9230) | 0,00 kr. | Mandag d. 25/11 |
Oplyste datoer gælder ved bestilling inden fredag 13.30
ABB drejelysdæmper for LED belysning 2-100W/VA med neonlampe Optimeret til dæmpning af Philips retrofit LED'er (LEDi) Til 230V glødelamper, Wolfram halogenlamper, lavspænding...
- Varenr.:2166002843
- EAN nr.:4011395232101
- Typenr.:2CKA006512A0345, 6523UR-103-500
910,00 kr.
pr. stk. | inkl. moms
Andre købte også
-
139,00 kr. -
261,00 kr.
Måske interessant?
-
15,20 kr. -
60,00 kr. -
164,00 kr. -
29,25 kr. -
23,25 kr. -
222,00 kr. -
28,75 kr. -
216,00 kr. -
347,00 kr. -
41,75 kr.
Beskrivelse
ABB drejelysdæmper for LED belysning 2-100W/VA med neonlampe
Optimeret til dæmpning af Philips retrofit LED'er (LEDi)
Til 230V glødelamper, Wolfram halogenlamper, lavspændings halogenlamper med konventionelle eller elektroniske transformere og energibesparende lyskilder 10-250W/VA
Lysdæmperen kan håndtere LED og konventionel belastning i samme installation
Med elektronisk kortslutningsbeskyttelse
Med elektronisk overbelastningsbeskyttelse
Med justerbar mindste lysstyrke
- Halogen belastnings område er: 10…400 W
- Frekvens område er 50…60 Hz

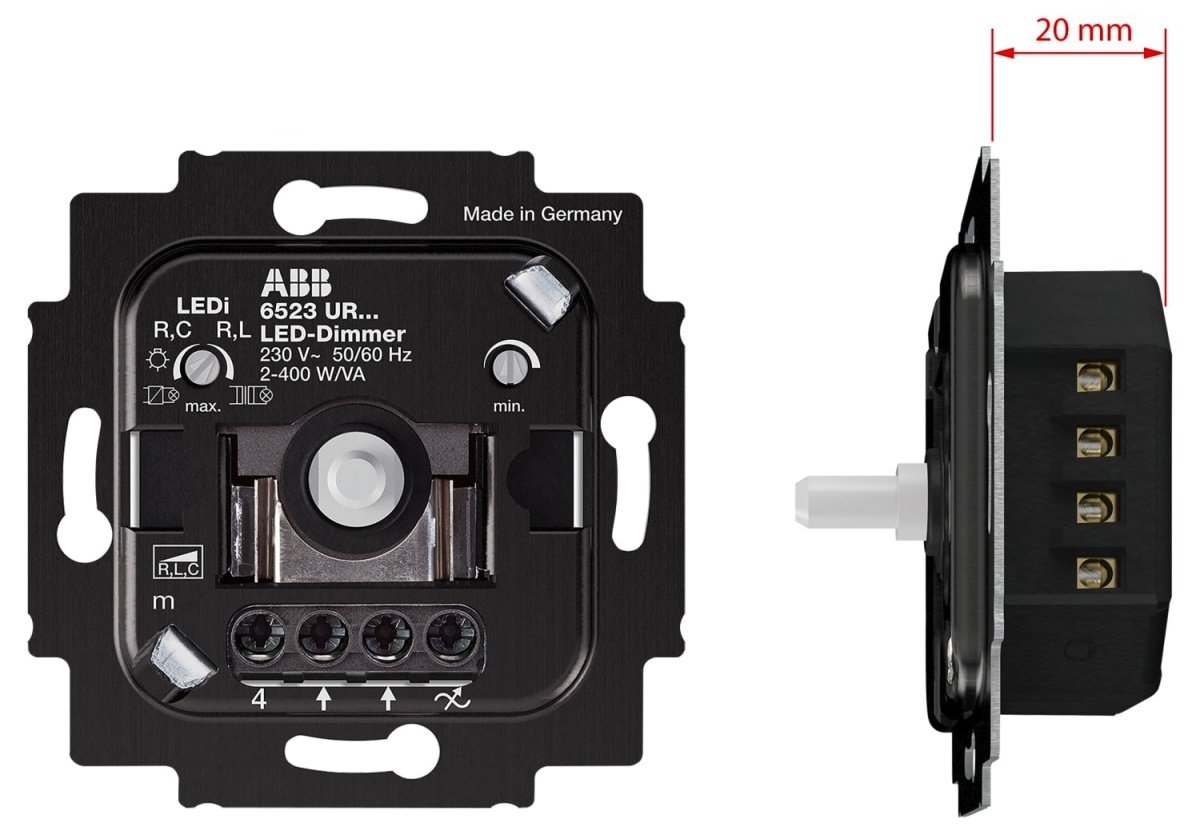

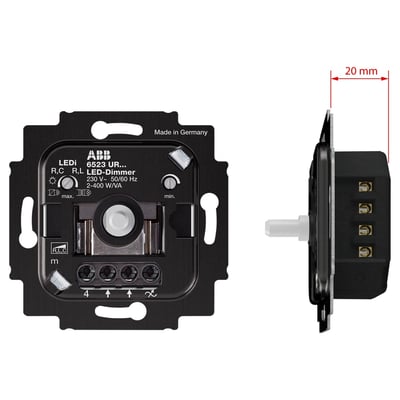

Very small installation depth: < 20 mm
Without claws.
With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi).
For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers.
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
With manually adjustable operating mode: trailing / leading edge control.
With adjustable minimum/maximum brightness.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection. With electronic overload protection.
Without cover plate.
Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (leading edge control)
Nominal power: 2 - 400 W/VA (trailing edge control)
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
In the case of conventional transformers, take ~20% transformer loss into account.
In case of electronic transformers, 5 % transformer losses.
Optimeret til dæmpning af Philips retrofit LED'er (LEDi)
Til 230V glødelamper, Wolfram halogenlamper, lavspændings halogenlamper med konventionelle eller elektroniske transformere og energibesparende lyskilder 10-250W/VA
Lysdæmperen kan håndtere LED og konventionel belastning i samme installation
Med elektronisk kortslutningsbeskyttelse
Med elektronisk overbelastningsbeskyttelse
Med justerbar mindste lysstyrke
- Halogen belastnings område er: 10…400 W
- Frekvens område er 50…60 Hz
Very small installation depth: < 20 mm
Without claws.
With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi).
For dimmable Retrofit-LEDs (LEDi) with conventional or electronic transformers.
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
With manually adjustable operating mode: trailing / leading edge control.
With adjustable minimum/maximum brightness.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection. With electronic overload protection.
Without cover plate.
Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (leading edge control)
Nominal power: 2 - 400 W/VA (trailing edge control)
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °C
Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
In the case of conventional transformers, take ~20% transformer loss into account.
In case of electronic transformers, 5 % transformer losses.
Specifikationer
-
Varenummer:2166002843
-
EAN nummer:4011395232101Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:2CKA006512A0345, 6523UR-103-500Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:ABB
