Solar Plus overstrømningsventil 3/4" lige USV overstrømningsventil er en selvvirkende reguleringsventil til varmeanlæg. USV ventilen anvendes til at opretholde en minimu...
- Varenr.:0802040682
- EAN nr.:8019001030970
- Typenr.:0265118
299,00 kr.
pr. stk. | inkl. moms
Andre købte også
-
79,00 kr. -
263,00 kr. -
76,50 kr. -
115,00 kr. -
43,25 kr. -
72,50 kr. -
323,00 kr. -
167,00 kr. -
125,00 kr. -
668,00 kr.
Beskrivelse

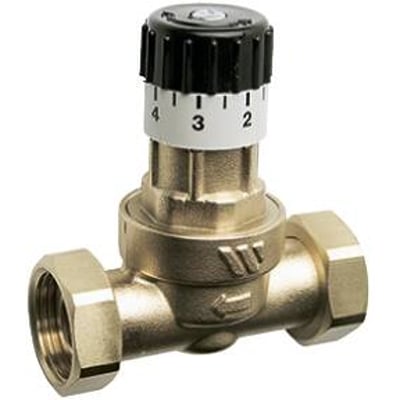

Solar Plus overstrømningsventil 3/4" lige
USV overstrømningsventil er en selvvirkende reguleringsventil til varmeanlæg.
USV ventilen anvendes til at opretholde en minimum gennemstrømning i anlægget.
Indstillingsområde 0,2 - 0,6 bar.
Max tryk 10 bar.
Max temperatur 110 grader.
Fremstillet i messing CW617
Relief valve for systems with automatic or manual shut-off elements on the
radiators (thermostatic valves, two-way zone valves). Female inlet connections,
Male union outlet. Body and cap of brass CW617N.
Adjustment : Position “0” = Fully open - Position “7” = Close to closing ?p =0.5 bar
Plastic knob. Max operating pressure : 6 bar.
Overpressure : 10 - 15%. Max operating temperature : 110°C
By-pass valve series USVR can be set in this way:
• Thighten blocking screw (1) (see overall dimensions).
• Set the USVR valve at the differential opening pressure ?P by turning regulation knob (2) (see overall dimensions).
The differential opening pressure DP shall exceed the user circuit load loss at rated discharge by approximately
20% in order that avoid valve opening be prevented. When the user circuits is completely closed, the USVR
valve shall be fully open.
• Turn regulation knob anticlockwise untilscale (3) (see overall dimensions) indicates zero. Then proceed, turning
clockwise, to calibration setting at the number required. Each number from 0-7 revers to an USVR16 - USVR20
USVR25 - USVR32.
• Once the correct setting is established, it can be fixed with the locking screw of the handwheel.
USV overstrømningsventil er en selvvirkende reguleringsventil til varmeanlæg.
USV ventilen anvendes til at opretholde en minimum gennemstrømning i anlægget.
Indstillingsområde 0,2 - 0,6 bar.
Max tryk 10 bar.
Max temperatur 110 grader.
Fremstillet i messing CW617
Relief valve for systems with automatic or manual shut-off elements on the
radiators (thermostatic valves, two-way zone valves). Female inlet connections,
Male union outlet. Body and cap of brass CW617N.
Adjustment : Position “0” = Fully open - Position “7” = Close to closing ?p =0.5 bar
Plastic knob. Max operating pressure : 6 bar.
Overpressure : 10 - 15%. Max operating temperature : 110°C
By-pass valve series USVR can be set in this way:
• Thighten blocking screw (1) (see overall dimensions).
• Set the USVR valve at the differential opening pressure ?P by turning regulation knob (2) (see overall dimensions).
The differential opening pressure DP shall exceed the user circuit load loss at rated discharge by approximately
20% in order that avoid valve opening be prevented. When the user circuits is completely closed, the USVR
valve shall be fully open.
• Turn regulation knob anticlockwise untilscale (3) (see overall dimensions) indicates zero. Then proceed, turning
clockwise, to calibration setting at the number required. Each number from 0-7 revers to an USVR16 - USVR20
USVR25 - USVR32.
• Once the correct setting is established, it can be fixed with the locking screw of the handwheel.
Specifikationer
-
Varenummer:0802040682
-
EAN nummer:8019001030970Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:0265118Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Øvrige
