DS936 Low Profile Panoramic PIR Detector • Enhanced signal processing • 360° x 7.5 m (24 ft) pattern • Surface/semi-flush mountable The ceiling mount, low profile panorami...
- Varenr.:5401030105
- EAN nr.:4060039178329
- Typenr.:DS936B, F.01U.414.145
485,00 kr.
pr. stk. | inkl. moms
Beskrivelse

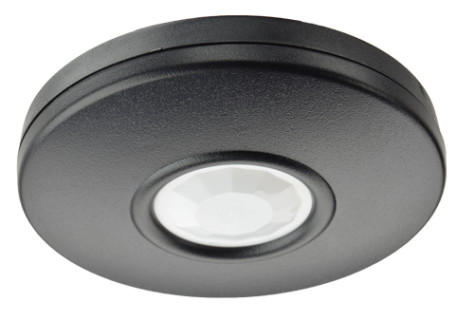

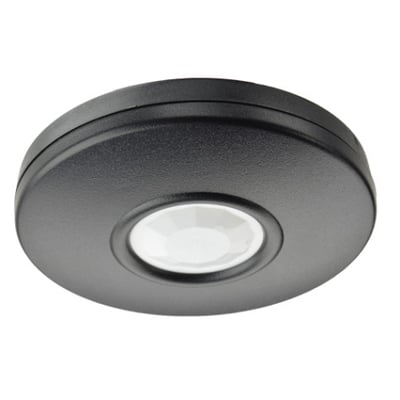

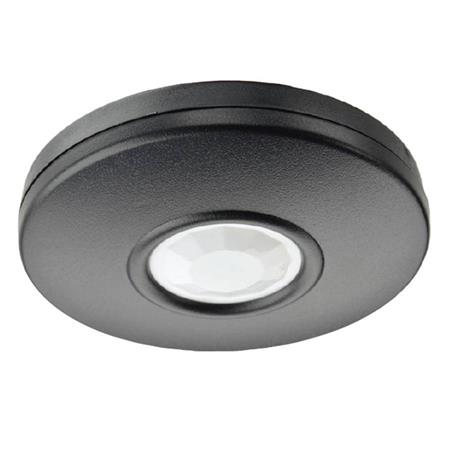

DS936 Low Profile Panoramic PIR Detector
• Enhanced signal processing
• 360° x 7.5 m (24 ft) pattern
• Surface/semi-flush mountable
The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a Fresnel lens to provide up to 7.5 m of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box.
Technical specifications
Mechanical
Material High impact ABS plastic enclosure
Dimensions 3.05 cm x 11.7 cm
Mounting height range 2 m to 3.6 m
Location Surface or semi-flush on ceiling or on standard 10 cm octagonal electrical box
Enclosure material High impact ABS plastic enclosure
Enclosure dimensions 3.05 cm x 11.7 cm
Environmental
Operating temperature and storage -29°C to +49°C
Operating relative humidity 93%, non-condensing
Electrical
Current 15 mA at 12 VDC
Voltage 10 VDC to 15 VDC
Alarm output Normally-closed reed relay rated at 3.0 W,
125 mA at 28 VDC for resistive loads and protected by a 4.7 O resistor in the common C leg
Tampers output Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
• Enhanced signal processing
• 360° x 7.5 m (24 ft) pattern
• Surface/semi-flush mountable
The ceiling mount, low profile panoramic DS936 PIR Detector uses alternate polarity pulse count. It also uses a Fresnel lens to provide up to 7.5 m of coverage and can be mounted on the surface, or semi-flush directly to a ceiling or a standard octagonal electrical box.
Technical specifications
Mechanical
Material High impact ABS plastic enclosure
Dimensions 3.05 cm x 11.7 cm
Mounting height range 2 m to 3.6 m
Location Surface or semi-flush on ceiling or on standard 10 cm octagonal electrical box
Enclosure material High impact ABS plastic enclosure
Enclosure dimensions 3.05 cm x 11.7 cm
Environmental
Operating temperature and storage -29°C to +49°C
Operating relative humidity 93%, non-condensing
Electrical
Current 15 mA at 12 VDC
Voltage 10 VDC to 15 VDC
Alarm output Normally-closed reed relay rated at 3.0 W,
125 mA at 28 VDC for resistive loads and protected by a 4.7 O resistor in the common C leg
Tampers output Normally-closed cover activated tamper switch with separate terminals. Tamper contacts rated 125 mA at 28 VDC maximum.
Specifikationer
-
Varenummer:5401030105
-
EAN nummer:4060039178329Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:DS936B, F.01U.414.145Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Bosch
