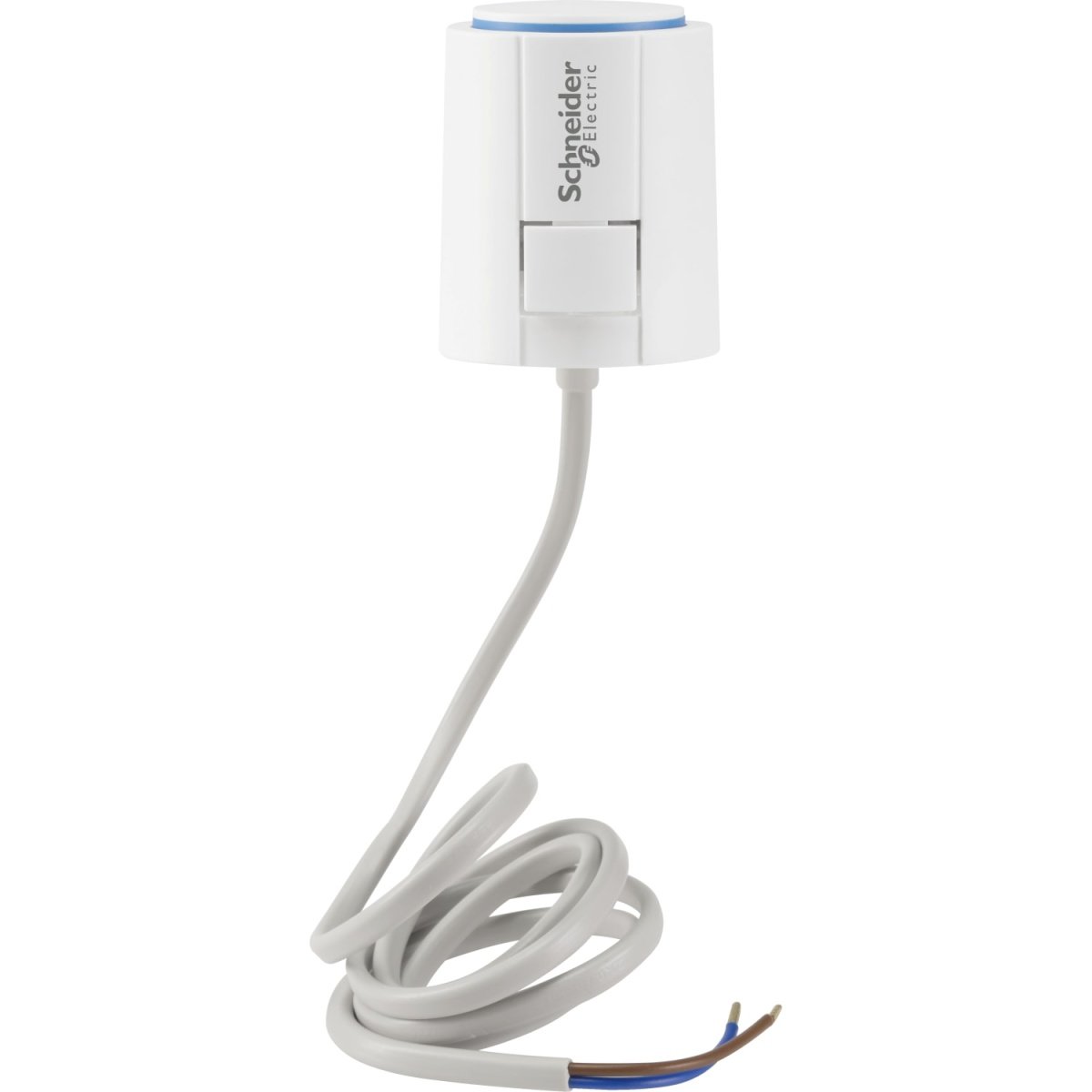

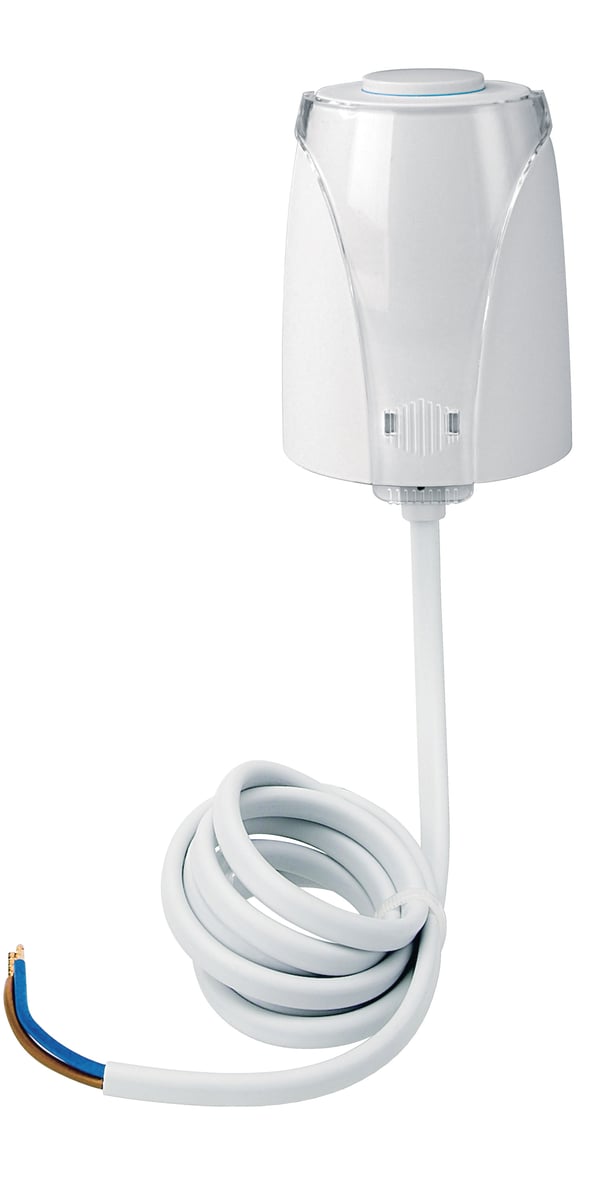

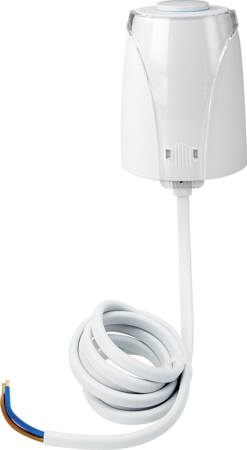

Thermoelectric valve drive 230 V. Thermoelectric valve drive for opening and closing valves. For 2-step or PWM control of heating, air conditioning and ventilation systems...

Varenr.:
1026000148
EAN nr.:
3606485011561
Typenr.:
MTN639125

514,00 kr.

pr. stk. | inkl. moms

Måske interessant?

Overspændingsafleder iPF 20kA, 340V, 3P+N, bolig
483,00 kr.
Schneider sløjfeskinne 3P+N 80A 12M bundmontage
80,50 kr.
Overspændingsafleder iPF 40kA, 340V, 3P+N, bolig
655,00 kr.
Sløjfeskinne afdækning t/pins R9XT20
48,00 kr.
Forgreningsdåse 65X65X45 abs grå
14,60 kr.
Forgreningsdåse Mureva, antracit grå, IP65, 87 x 87 x 42 mm
20,75 kr.
Plugs TP1-100 gul - 100 stk
29,75 kr.
Kabelclips TC 10-14mm 35mm søm hvid - 100 stk
107,00 kr.
Kabelclips TC 8-12mm 35mm søm lg - 100 stk
70,50 kr.
Sløjfeskinne 4P 100A 12M
199,00 kr.

Beskrivelse

Thermoelectric valve drive 230 V. Thermoelectric valve drive for opening and closing valves. For 2-step or PWM control of heating, air conditioning and ventilation systems, individual room control of surface heaters, control of heating circuit distributors. For radiators, convector heaters, cooling ceilings. Operation is carried out by the heating actuator REG-K/6x24/230/0.16A, fan coil actuator REG-K or a room temperature control unit (230 V) with 2-step or PWM output. Valve adapters permit compatibility with a variety of valve bodies and heating circuit distributors. Functions: First-open function: The drive is factory-set to de-energised open. This allows the heating to be operated during the building shell phase. De-energised closed. Functional display (open, closed, intermediate settings). Adjustment control. Plug-in connecting cable. Plug-in assembly. Supply voltage: AC 230 V, 50/60 Hz. Starting current: max. 350 mA for max. 100 ms. Power consumption: 1 W. Lift: approx. 4 mm. Running time: 3.5 min for 4 mm. Positioning force: 100 N ± 5 %. Circulating medium temperature: 0-100°C. Type of protection: IP 54 / II, in all installation positions. Connecting cable: 1 m, 2x0.75 mm² pluggable. Dimensions: 59.2x44.3x56 mm (HxWxD). Colour: polar white.

zqmlftbh9utfl6e643eg (dokument) (716,96 KB)
chxy9glv1badwxqrl1td (dokument) (2,56 MB)
cibzbqkt6tqfff3hupdu (dokument) (3,3 MB)
uvzugqvzegnoedlqcgvq (dokument) (386,42 KB)
krvtjn0vxdnpmgibnydw (dokument) (334,78 KB)
yyposvn6pev6l7882lrm (dokument) (955,98 KB)

Specifikationer

Varenummer:

1026000148
EAN nummer:

3606485011561

Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
Typenummer:

MTN639125

Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
Brand:

Schneider Electric
