Midlertidigt udsolgt (forventes på lager igen: 30-11-2024)
TOTEN System G, 19" cabinet, 42U, 600x1000, glass front door, perforated rear door, 800kg load, black Machine-made cabinet where all parts are cut out with laser, punched wit...
- Varenr.:7333048034519
- EAN nr.:7333048034519
- Typenr.:G6.6042.9801
7.786,00 kr.
pr. stk. | inkl. moms
Måske interessant?
Beskrivelse

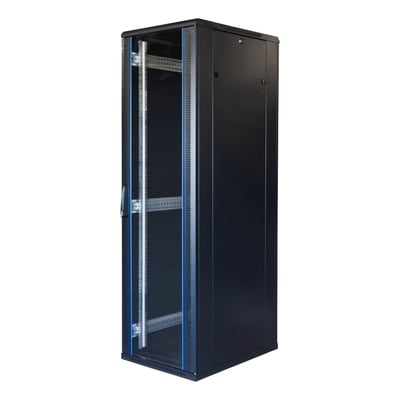

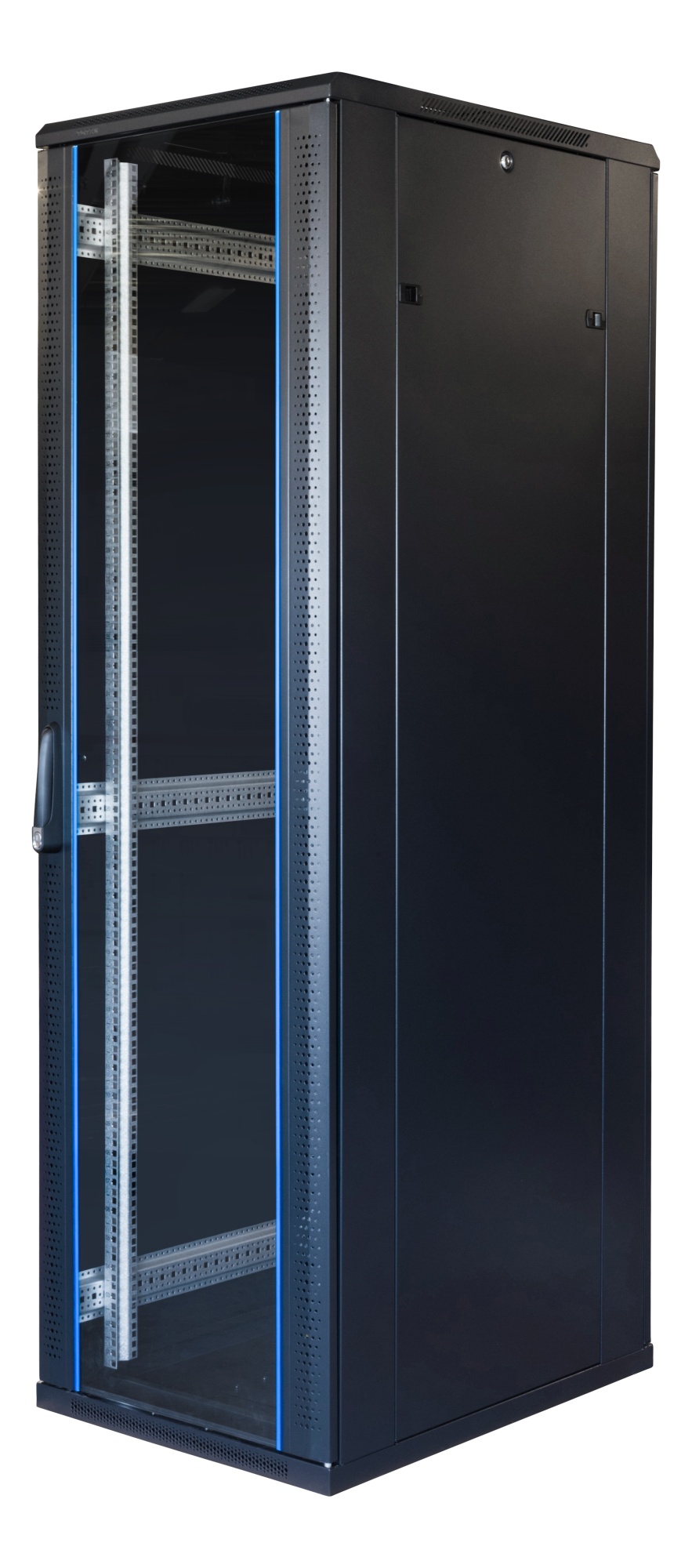

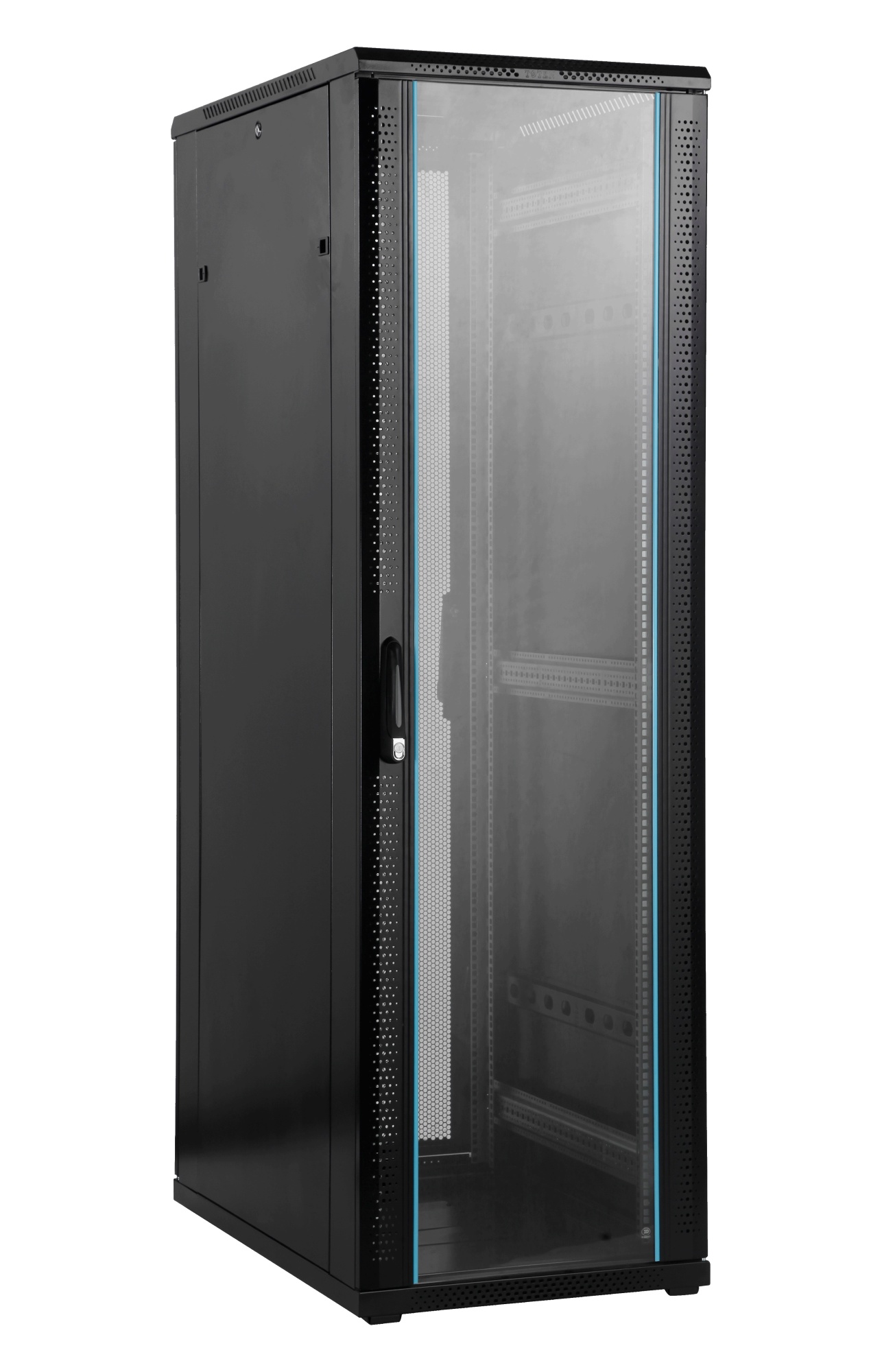

TOTEN System G, 19" cabinet, 42U, 600x1000, glass front door, perforated rear door, 800kg load, black
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.

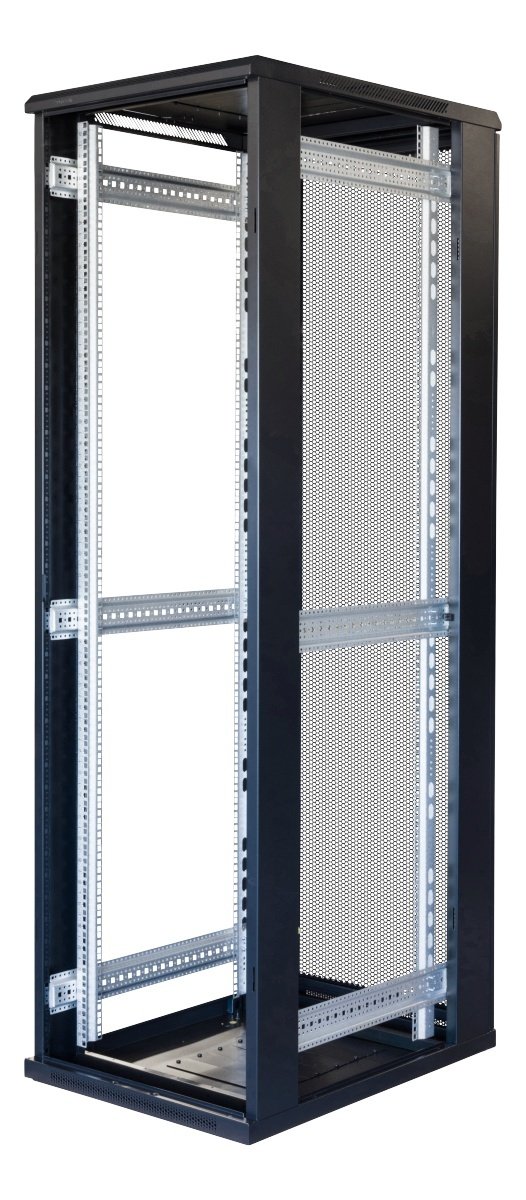

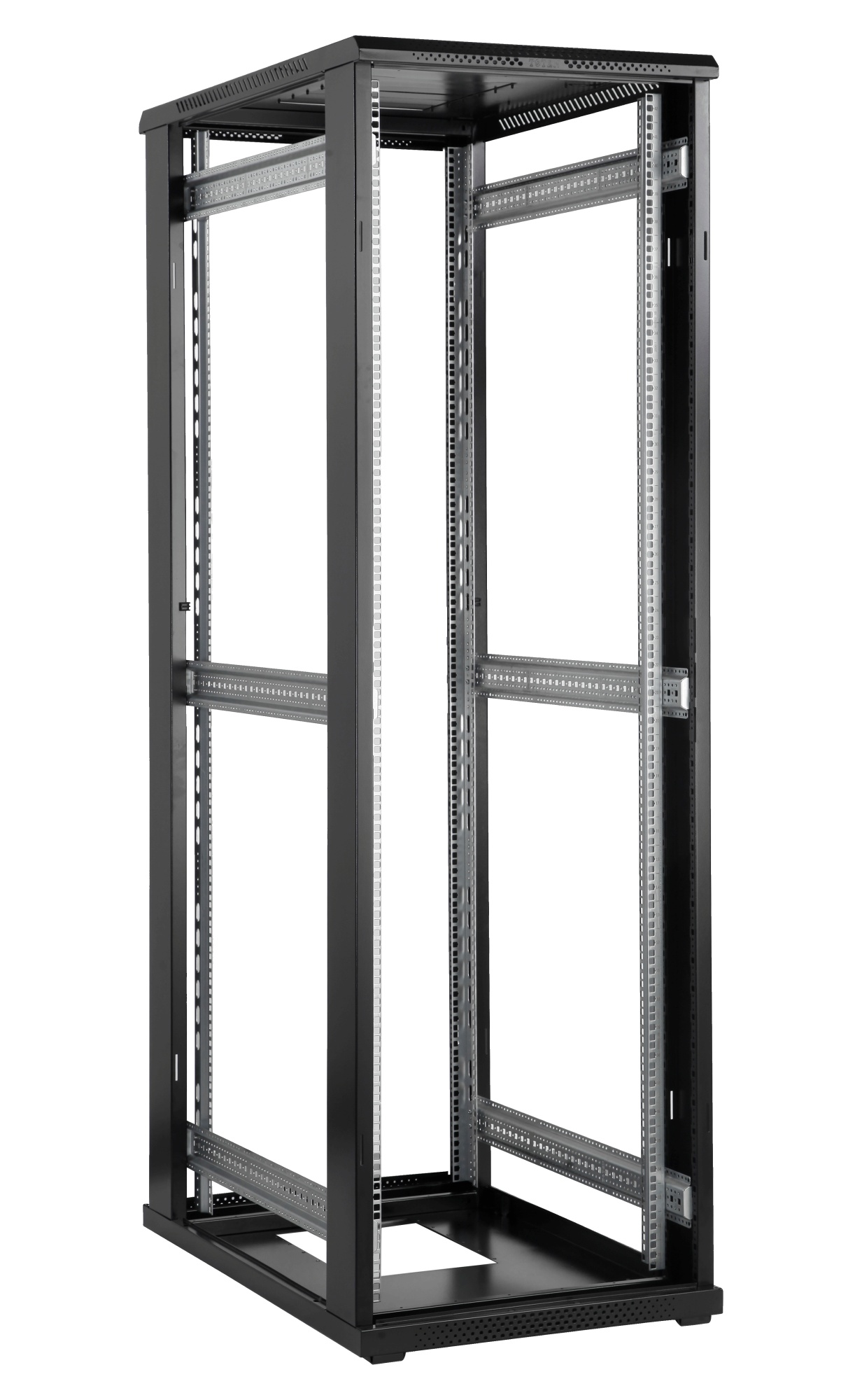

The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted.
The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity
At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.
• A cabinet with options for both server and network equipment.

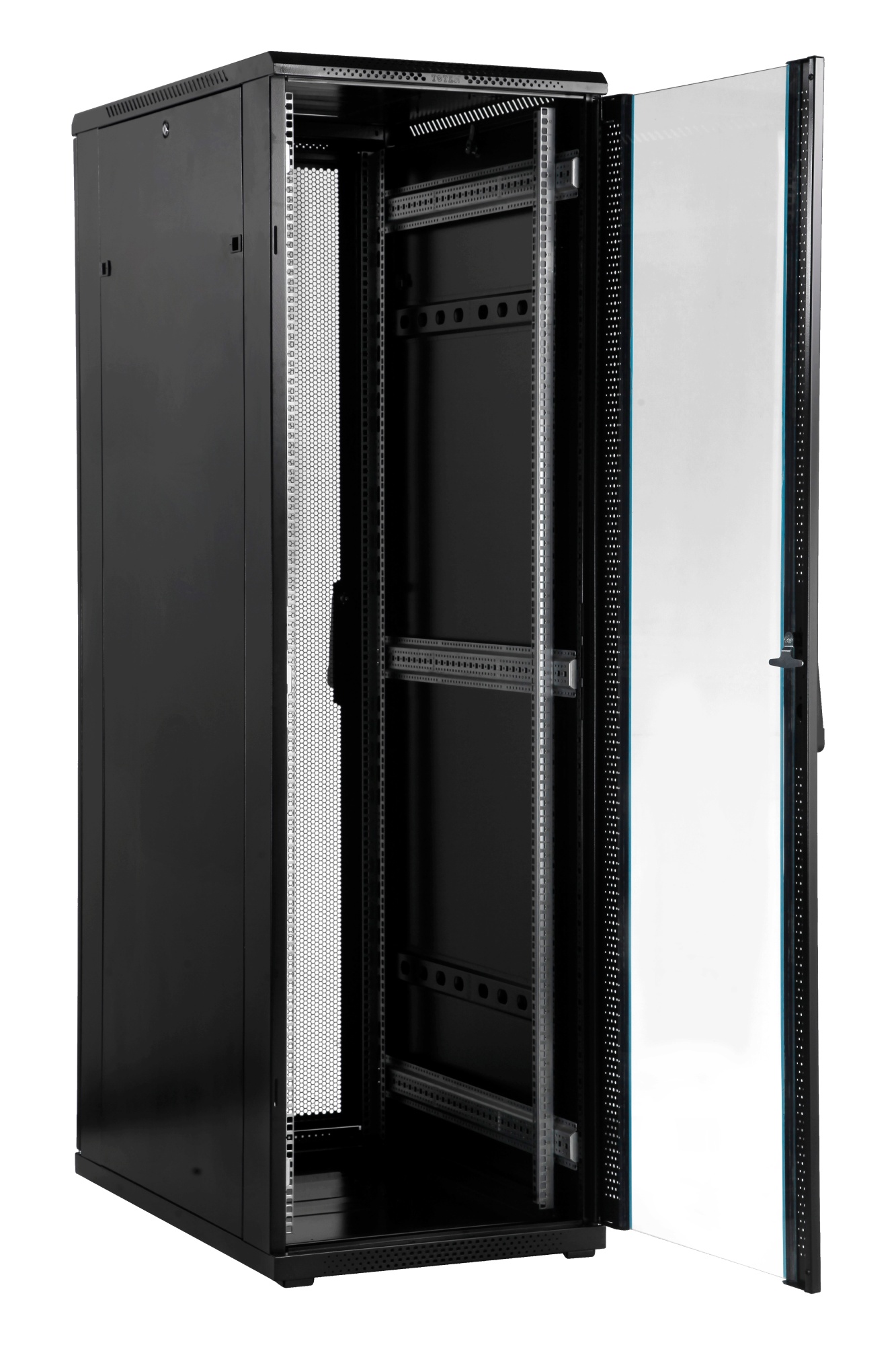

• Front door of tempered glass with ventilated steel frame.

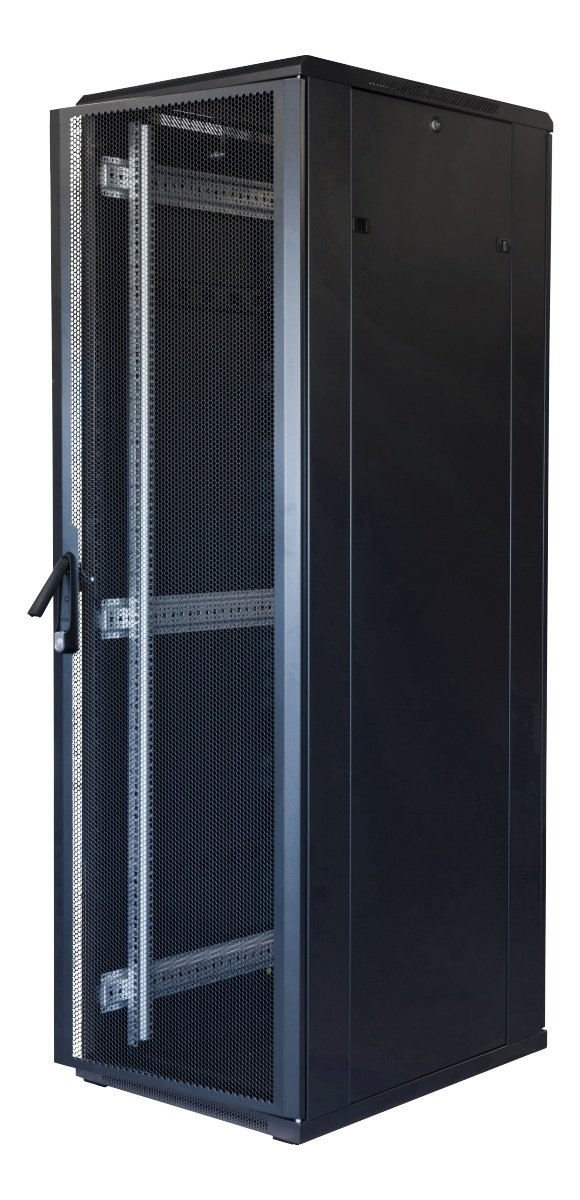

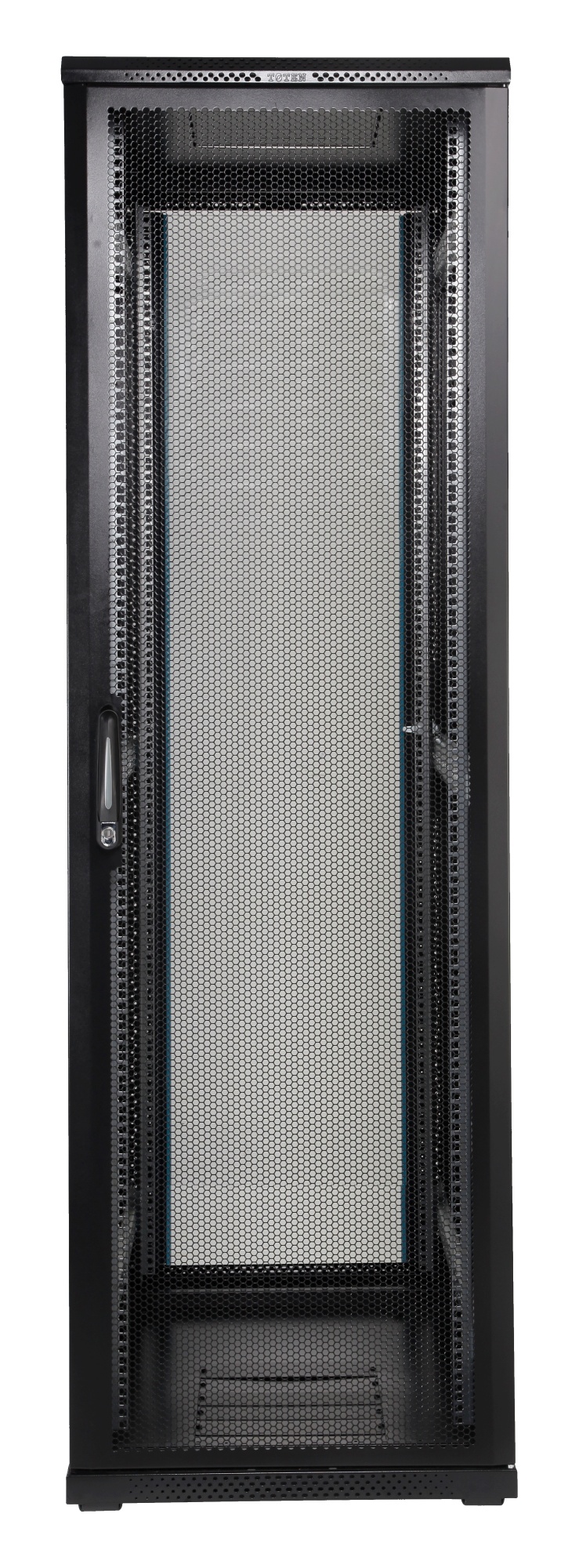

• Back door of perforated metal with 75% ventilation rate.
• Distributed loading capacity: 800kg (Static).
• Internal mounting width of 487mm.
• Mounting columns of 2mm zinc alloy.
• Outer cover of 1.2mm powder coated SPCC steel (RAL9004).
• Protection class: IP20.
• Dimensions (WxDxH): 600x1000x2055mm (42U).
All cabinets have right-handed front- and rear doors with locks as well as removable and lockable side panels.
The cabinet comes bundled with feet and is ready for use in five minutes.

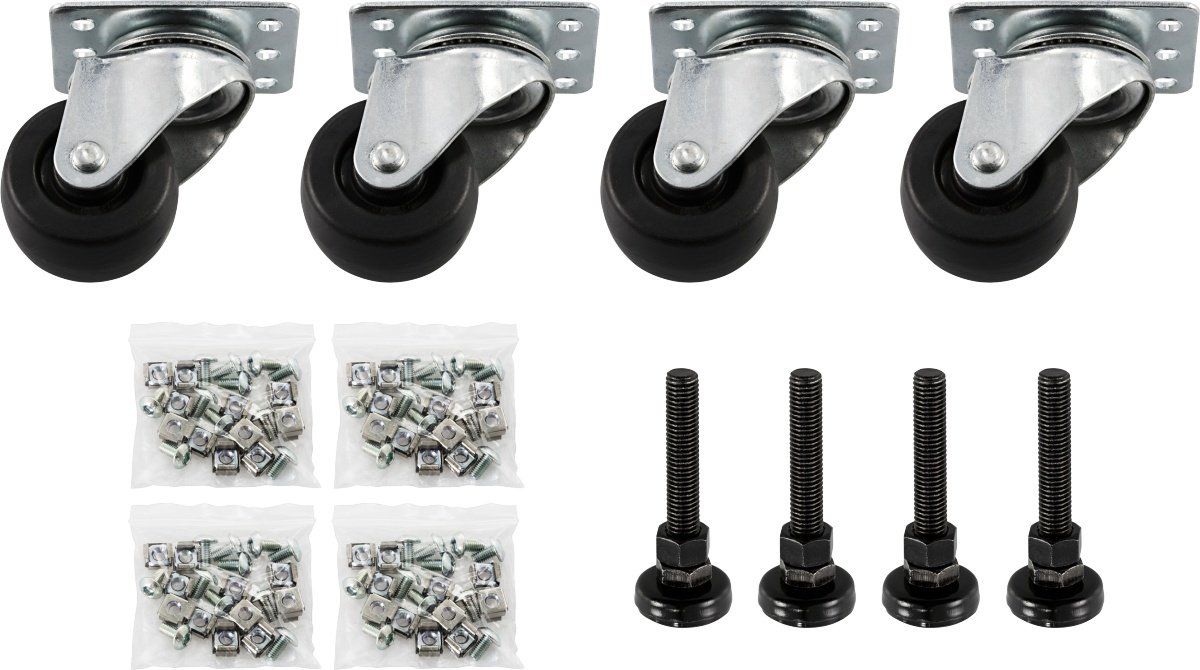

Wheels, basket nuts with screw, keys and a mounting tool are included.
Always open the packaging and check that the cabinet is intact before you.
Machine-made cabinet where all parts are cut out with laser, punched with hydraulic turret and welded by robots to achieve absolute precision. All sharp edges are rounded and then assembled and quality assured according to ISO 9001.
The 19 "units are mounted on four columns made of a patented zinc alloy. A material that helps to counteract electrostatic damage, is strong enough for repeated installations and has a dirt-resistant surface structure. The columns are adjustable for- and backwards in increments of 25 millimeters. They also have well-designed holes for cable handling and have a clear Unit-marking that is also visible when the units are mounted.
The roof offers space for the TOTEN Modular Fan System with practical exterior mounting and providing a selectable cooling capacity
At the bottom, there are step-wise openable cable glands for up to 1000 network cables as well as separate holes for power cables.
• A cabinet with options for both server and network equipment.
• Front door of tempered glass with ventilated steel frame.
• Back door of perforated metal with 75% ventilation rate.
• Distributed loading capacity: 800kg (Static).
• Internal mounting width of 487mm.
• Mounting columns of 2mm zinc alloy.
• Outer cover of 1.2mm powder coated SPCC steel (RAL9004).
• Protection class: IP20.
• Dimensions (WxDxH): 600x1000x2055mm (42U).
All cabinets have right-handed front- and rear doors with locks as well as removable and lockable side panels.
The cabinet comes bundled with feet and is ready for use in five minutes.
Wheels, basket nuts with screw, keys and a mounting tool are included.
Always open the packaging and check that the cabinet is intact before you.
Specifikationer
-
Varenummer:7333048034519
-
EAN nummer:7333048034519Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:G6.6042.9801Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Farve:Sort
-
Model:Rackskab til væg / gulv
-
Størrelse:19"
-
Brand:Toten
