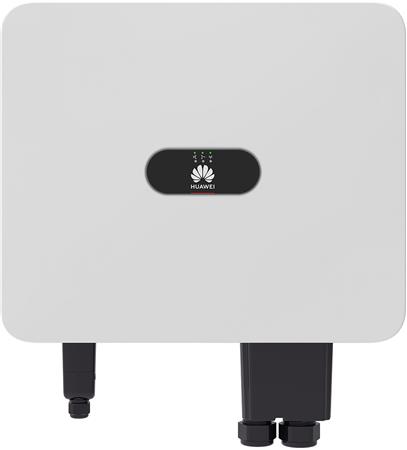

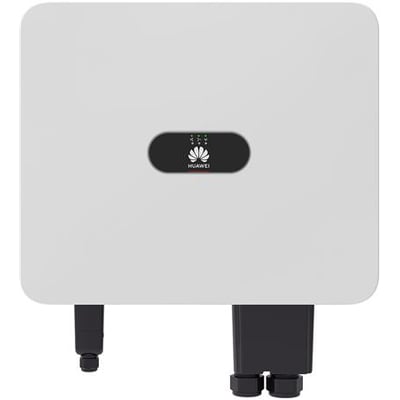

Huawei SUN2000-15K-MB0 3-faset Smart PV Inverter, nominel effekt på 15,0kW. 2 MPP tracker. - Dongle er tilkøb, 10 års garanti. SUN2000-12/15/17/20/25K-MB0 Serie Smart Energ...
- Varenr.:5478002285
- EAN nr.:5705157324669
- Typenr.:SUN2000 15K-MB0
23.313,00 kr.
pr. stk. | inkl. moms
Måske interessant?
-
36.622,00 kr. -
170,00 kr. -
20.604,00 kr. -
112.342,00 kr. -
95.624,00 kr. -
77.144,00 kr. -
1.435,00 kr. -
2.103,00 kr. -
8.094,00 kr. -
25.127,00 kr.
Beskrivelse
Huawei SUN2000-15K-MB0 3-faset Smart PV Inverter, nominel effekt på 15,0kW. 2 MPP tracker. - Dongle er tilkøb, 10 års garanti.
SUN2000-12/15/17/20/25K-MB0 Serie
Smart Energy Controller
Active Safety - Active Arcing Protection
Battery-ready
2 Battery Terminals; Compatible with LUNA2000-S0 and S1
DC Input
Recommended max. PV power 22,500 Wp
Max. input voltage 1.100 V
Max. input current per MPPT 30 A (two strings) / 20 A (single string)
Max. short-circuit current 40 A
Start-up voltage 200 V
MPPT operating voltage range 200 V ~ 1,000 V
Full-load MPPT voltage range 410 V ~ 800 V
Rated input voltage 600 V
Max. number of inputs 4
Number of MPP trackers 2
Smart String Energy Storage System Terminal
Compatible Smart String ESS : LUNA2000-5/10/15-S0
LUNA2000-7/14/21-S1 (Available from 30/11/2023)
Number of terminals 2
Max. charging power 21 kW (Single string) / 25 kW (Two strings)
Max. discharging power 16.5 kW
Max. operating current 26.25 A (per string)
Operating voltage range 600 V ~ 980 V
Output
Rated output power 15,000 W
Max. apparent power 16,500 VA
Max. active power (cosf = 1) 16,500 W
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE
Rated AC grid frequency 50 Hz / 60 Hz
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion < 3 %
Weight 21 kg
Dimensions (W x H x D) 546 x 460 x 228 mm
Protection level IP66
Certificates EN/IEC62109-1, EN/IEC62109-2.
SUN2000-12/15/17/20/25K-MB0 Serie
Smart Energy Controller
Active Safety - Active Arcing Protection
Battery-ready
2 Battery Terminals; Compatible with LUNA2000-S0 and S1
DC Input
Recommended max. PV power 22,500 Wp
Max. input voltage 1.100 V
Max. input current per MPPT 30 A (two strings) / 20 A (single string)
Max. short-circuit current 40 A
Start-up voltage 200 V
MPPT operating voltage range 200 V ~ 1,000 V
Full-load MPPT voltage range 410 V ~ 800 V
Rated input voltage 600 V
Max. number of inputs 4
Number of MPP trackers 2
Smart String Energy Storage System Terminal
Compatible Smart String ESS : LUNA2000-5/10/15-S0
LUNA2000-7/14/21-S1 (Available from 30/11/2023)
Number of terminals 2
Max. charging power 21 kW (Single string) / 25 kW (Two strings)
Max. discharging power 16.5 kW
Max. operating current 26.25 A (per string)
Operating voltage range 600 V ~ 980 V
Output
Rated output power 15,000 W
Max. apparent power 16,500 VA
Max. active power (cosf = 1) 16,500 W
Rated output voltage 220 Vac / 380 Vac, 230 Vac / 400 Vac, 240 Vac / 415 Vac; 3 W / N + PE
Rated AC grid frequency 50 Hz / 60 Hz
Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion < 3 %
Weight 21 kg
Dimensions (W x H x D) 546 x 460 x 228 mm
Protection level IP66
Certificates EN/IEC62109-1, EN/IEC62109-2.
Specifikationer
-
Varenummer:5478002285
-
EAN nummer:5705157324669Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Typenummer:SUN2000 15K-MB0Nogle produkter sælges under flere forskellige type nr., EAN nr. osv.
-
Brand:Huawei
